Process Analysis Toolkit (PAT) 3.5 Help |

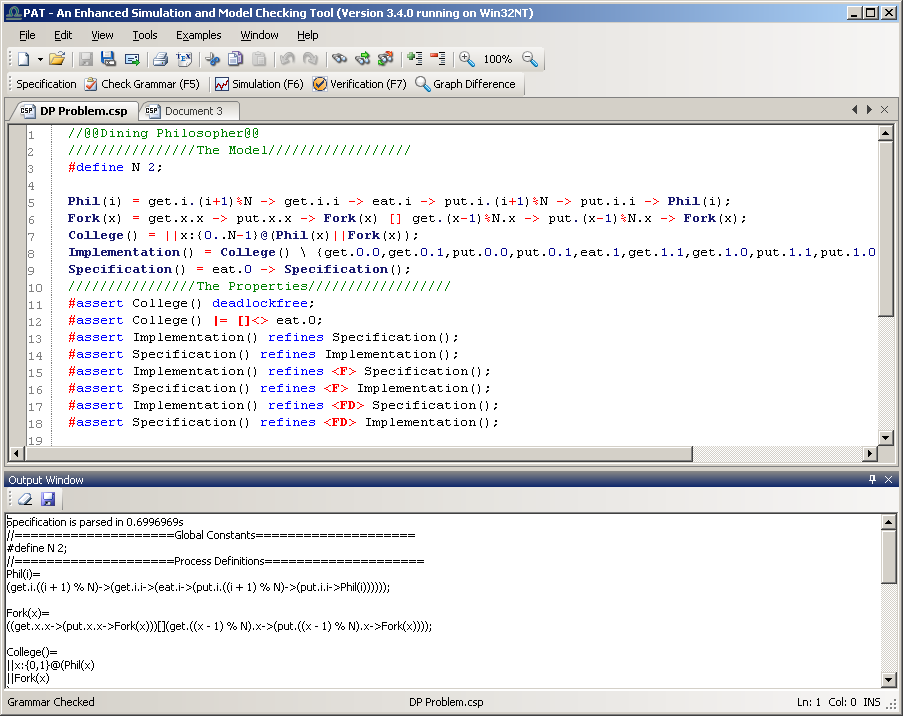

PAT comes with complete and user friendly graphic interface to make the tool
handy to use. The graphic user interface consists of the following parts to allow users
to edit the model, simulate it and verify the properties of the
model respectively. In this section, we explain the GUI of the CSP module as the
demonstrating example. The GUIs for other modules are similar. The system options are explained here.
